PRODUCT DESCRIPTION

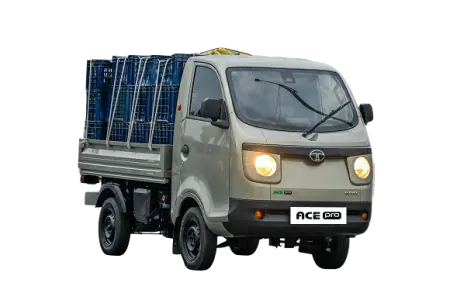

The Tata Ace Pro Bi‑Fuel is a dual-fuel mini truck designed to offer flexibility and efficiency by operating on both CNG and petrol. It is ideal for small businesses and fleet operators looking to reduce fuel costs while enjoying uninterrupted operations across urban and semi-urban routes.

FEATURES

• Size: Compact – perfect for city navigation

• Payload Capacity: 750 kg

• Dimensions: Length – 3,560 mm, Width – 1,497 mm, Height – 1,820 mm

• Wheelbase: 1,800 mm

• Ground Clearance: ~170 mm

ENGINE & PERFORMANCE

• Engine Type: 694 cc, 2-cylinder, bi-fuel (CNG + Petrol), BS6-compliant

• Max Power:

  • CNG: 25.6 HP @ 4,000 rpm

  • Petrol: 30 HP @ 4,000 rpm

• Max Torque:

  • CNG: 51 Nm @ 2,500 rpm

  • Petrol: 55 Nm @ 2,500 rpm

• Top Speed: ~55 km/h

• Gradeability:

  • CNG: ~27.5%

  • Petrol: ~34.5%

• Transmission: Manual – 5-speed + Reverse

• Clutch: Single plate dry friction diaphragm type

• Steering: Mechanical rack and pinion

FUEL SYSTEM & EFFICIENCY

• Fuel Type: CNG + Petrol

• CNG Tank Capacity: ~45 L (~12 kg equivalent)

• Petrol Tank Capacity: 5 L (used for backup and cold starts)

• Mileage: Approx. 21 km/kg in CNG mode

• Cold Start: Direct-on-CNG functionality enabled

CHASSIS, BRAKES & SUSPENSION

• Brakes: Front – Disc; Rear – Drum

• Front Suspension: Independent McPherson Strut

• Rear Suspension: Semi-Trailing Arm with Coil Springs and Hydraulic Dampers

• Tyres: 145 R12 LT Radial Tubeless

DIMENSIONS & WEIGHT

• Gross Vehicle Weight (GVW): ~1,535–1,790 kg

• Kerb Weight: ~785 kg

• Payload: 750 kg

• Minimum Turning Radius: ~3.75 – 4.3 m

CABIN & FEATURES

• Seating: Driver + 1 Passenger

• Comfort Features:

  • Ergonomically designed seats with headrests

  • Gear shift advisor for fuel efficiency

  • Large cabin with ample legroom

• Infotainment: 7″ touchscreen display

• Safety Features:

  • Reverse camera

  • Parking assist

  • Passive safety compliant (AIS‑096 standards)

WARRANTY

• Vehicle Warranty: 2 Years / 72,000 km

✅ UNIQUE SELLING PROPOSITIONS (USP)

• Dual-fuel flexibility ensures fuel availability

• Excellent fuel efficiency with CNG

• Cost-effective operations for small businesses

• Strong payload capacity in a compact format

• Smart, driver-friendly features for daily use

🌐 CONNECTED TECH: FLEET EDGE SUPPORT

• Real-time vehicle tracking and trip monitoring

• Predictive maintenance alerts and engine diagnostics

• Driving behavior insights and route optimization

• Geo-fencing and point-of-interest tracking

• Integrated app and web access for fleet managers

• AIS-140 compliant with built-in 4G telematics

APPLICATIONS

• FMCG and retail goods transport

• E-commerce and courier deliveries

• Local distribution and vendor support

• Light construction and utility service transport
